Introduction
In electrical engineering, analyzing complex circuits can often become time-consuming and confusing. That’s where Thevenin’s Theorem comes in as a powerful tool. It allows engineers and students to simplify complicated networks into a much easier equivalent circuit. Whether you are preparing for competitive exams like JEE or studying engineering subjects, understanding this theorem is essential.
In this article, we will break down Thevenin’s Theorem, explain its concept, derivation, step-by-step method, and applications, making it easy for you to master.
What is Thevenin’s Theorem?
Thevenin’s Theorem states that:
Any linear bilateral network consisting of voltage sources, current sources, and resistances can be replaced by an equivalent circuit with a single voltage source (Vth) in series with a single resistance (Rth).
This equivalent circuit behaves exactly the same as the original circuit when viewed from the load terminals.
Why is Thevenin’s Theorem Important?
The importance of Thevenin Equivalent Circuit lies in its ability to simplify analysis. Instead of solving a complex network repeatedly for different loads, you can convert it into a simple circuit and perform calculations easily.
Key Benefits:
- Reduces complex circuits into simple form
- Saves time during calculations
- Helps in quick analysis for different load conditions
- Widely used in electrical and electronics engineering

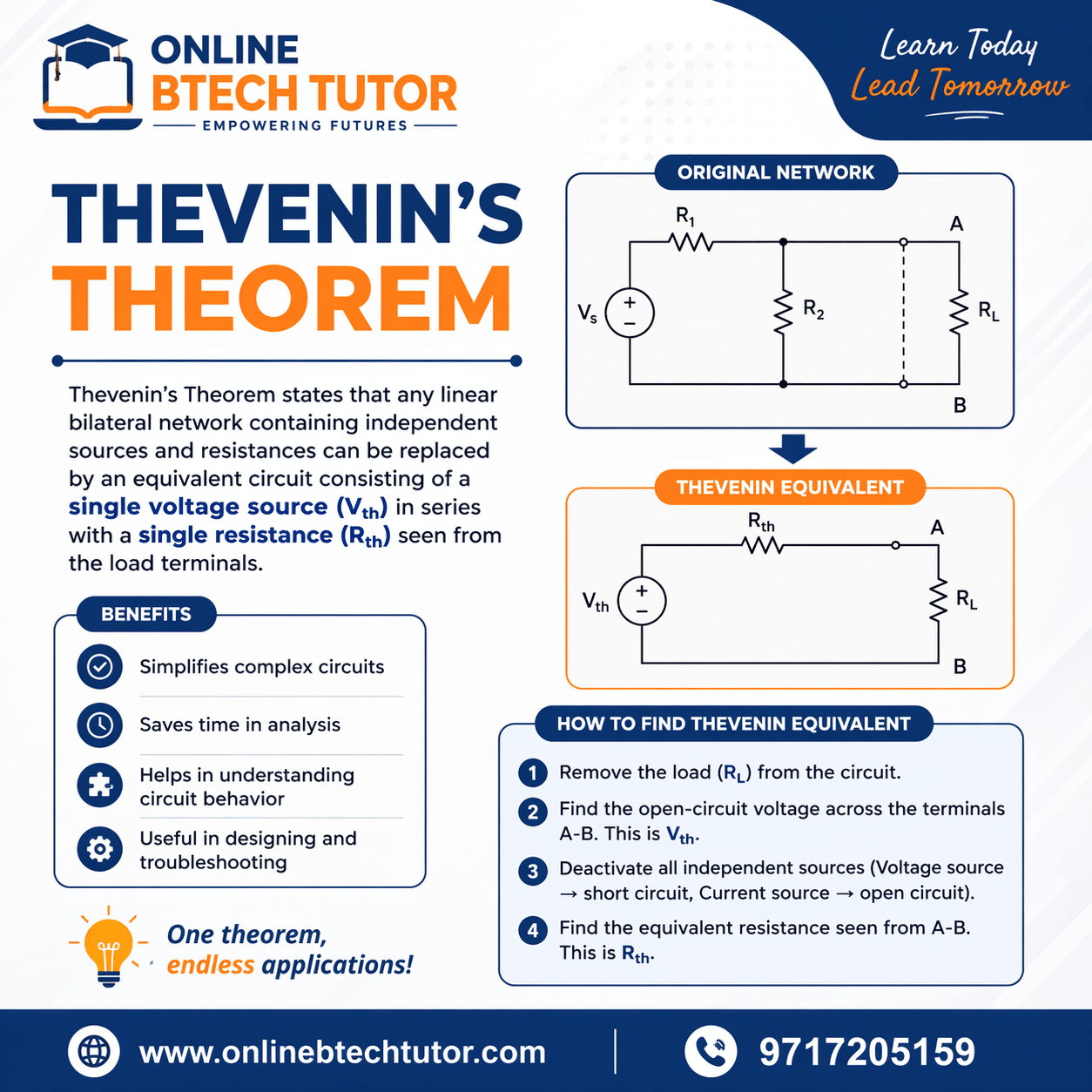

Understanding Thevenin Equivalent Circuit
The simplified circuit consists of:
- Thevenin Voltage (Vth): Open-circuit voltage across terminals
- Thevenin Resistance (Rth): Equivalent resistance seen from the terminals
This means any complicated network can be replaced with:
👉 A single voltage source in series with a resistor
Step-by-Step Procedure to Apply Thevenin’s Theorem
Let’s understand how to apply Thevenin’s Theorem in a systematic way:
Step 1: Remove the Load Resistor
Disconnect the load resistor from the circuit terminals where you want to find the equivalent.
Step 2: Find Thevenin Voltage (Vth)
Calculate the voltage across the open terminals. This is known as the open-circuit voltage.
Step 3: Deactivate All Independent Sources
- Replace voltage sources with short circuits
- Replace current sources with open circuits
Step 4: Find Thevenin Resistance (Rth)
Calculate the equivalent resistance seen from the open terminals.
Step 5: Draw Thevenin Equivalent Circuit
Replace the original network with:
- Vth (voltage source)
- Rth (series resistance)
Reconnect the load resistor.
Example Explanation
Suppose you have a circuit with multiple resistors and sources. Solving it directly using Kirchhoff’s laws may take time. By applying Thevenin’s Theorem, you:
- Remove the load
- Find Vth
- Calculate Rth
- Replace the circuit
Now, the circuit becomes simple, and current through the load can be calculated using Ohm’s Law:I=Rth+RLVth
Applications of Thevenin’s Theorem
The Thevenin Theorem explained is not just theoretical—it has practical importance in real-world engineering.
1. Circuit Analysis
Used to simplify large electrical networks.
2. Power Systems
Helps in analyzing transmission lines and load behavior.
3. Electronics Design
Useful in designing amplifiers and signal circuits.
4. Troubleshooting Circuits
Engineers use it to isolate faulty parts.
5. Exam Preparation
Very important for JEE, GATE, and engineering exams.
Thevenin vs Norton Theorem
Students often confuse Thevenin’s Theorem with Norton’s Theorem.
| Feature | Thevenin | Norton |
|---|---|---|
| Equivalent | Voltage source | Current source |
| Resistance | Series | Parallel |
| Conversion | Vth = In × Rth | In = Vth / Rth |
Both are interchangeable and equally useful.
Common Mistakes to Avoid
While applying Thevenin’s Theorem, students often make these mistakes:
- Forgetting to remove the load resistor
- Incorrectly deactivating sources
- Mixing up Vth and Rth
- Calculation errors in resistance
Careful step-by-step solving avoids these issues.
Tips to Master Thevenin’s Theorem
- Practice numerical problems regularly
- Understand the concept instead of memorizing
- Use circuit diagrams for clarity
- Solve previous year questions
Real-Life Analogy
Think of a complicated circuit like a large machine. Instead of understanding every small part, Thevenin’s Theorem lets you replace it with a simple model that behaves the same way externally.
This makes analysis faster and more efficient.
Conclusion
Thevenin’s Theorem is one of the most powerful tools in electrical engineering. It simplifies complex circuits into manageable forms, saving time and effort. Whether you are a student preparing for exams or an engineer solving real-world problems, mastering this theorem is essential.
By understanding Thevenin Voltage, Thevenin Resistance, and the step-by-step procedure, you can easily analyze even the most complicated networks.
